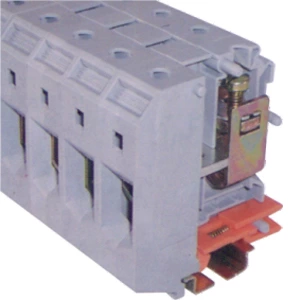

JHD5-150 - High-current terminal block
- Type:
- High-current terminal block
- Voltage:
- 1000 V
- Nominal Current:
- 309 A
- Number Of Connections:
- 2
- Connection Method:
- Screw connection
- Rated Cross Section:
- 150 mm²
- Cross Section:
- 35 mm² - 150 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-150 |  |
150mm² 120mm² 150mm² | 000AWG 000AWG 000AWG | 31mm | 309A | 4 | 31/118.5/100 | 1000/309A/150mm² |
Specfication:
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M10/4.0 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

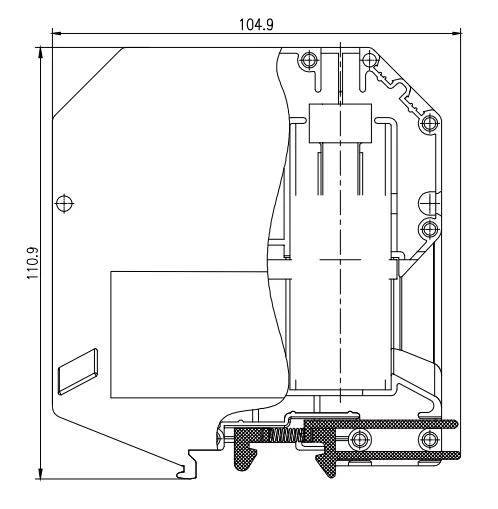

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
