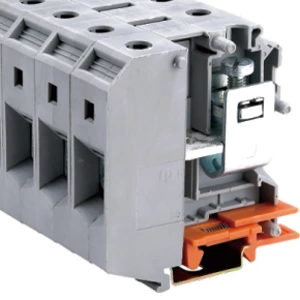

JHD5-50 - High-current terminal block
- Type:
- High-current terminal block
- Voltage:
- 1000 V
- Nominal Current:
- 150 A
- Number Of Connections:
- 2
- Number Of Positions:
- 1
- Connection Method:
- Screw connection
- Rated Cross Section:
- 50 mm²
- Cross Section:
- 16 mm² - 70 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-50 |  |
50mm² 50mm² 50mm² | 0AWG 0AWG 0AWG | 20mm | 150A | 14 | 20/83.5/70.5 | 1000/150A/50mm² |
Specfication:
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M6/2.5 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

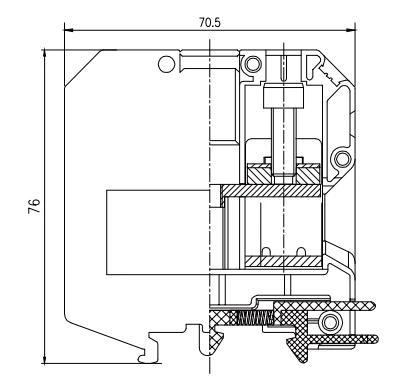

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
