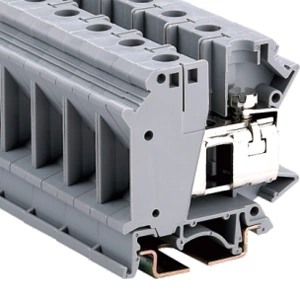

JHD5-35 - Installation terminal block
Installation terminal block, nom. voltage: 800 V, nominal current: 125 A, Screw connection, Rated cross section: 35 mm², cross section: 0.75 mm² - 35 mm², Color: gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-35 |  |
35mm² 35mm² 35mm² | 0AWG 2AWG 0AWG | 15.2mm | 125A | 32 | 15.2/51/55 | 800/125A/35mm² |
Specfication:
| End cover | CP |
| Cross-connection 10-Polo,Separable | ZL2-35 ZL3-35 |
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M6/2.5 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

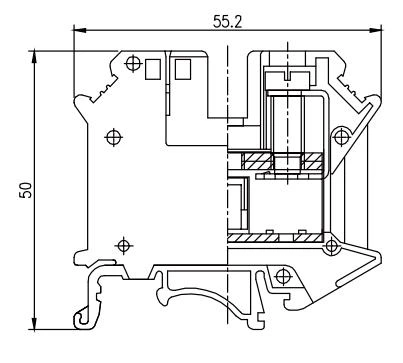

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
