JHD5-6 - Feed-through terminal block
- Type:
- Feed-through terminal block
- Voltage:
- 800 V
- Nominal Current:
- 41 A
- Number Of Connections:
- 2
- Connection Method:
- Screw connection
- Rated Cross Section:
- 6 mm²
- Cross Section:
- 0.2 mm² - 10 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-6 |  |
6mm² 4mm² 6mm² | 10AWG 12AWG 10AWG | 8.2mm | 41A | 75 | 8.2/47/42.5 | 800V/41A/6mm² |
Specfication:
| End cover | D2.5-10 |
| Cross-connection 10-Polo,Separable | ZL2-6 ZL3-6 ZL10-6 |
| Insertion bridge 10-Polo,Separable | BLS2-6 BLS3-6 BLS10-6 |
| Partition plate | FP |
| Small Partition | CP |
| Marking tags | ZB8 |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

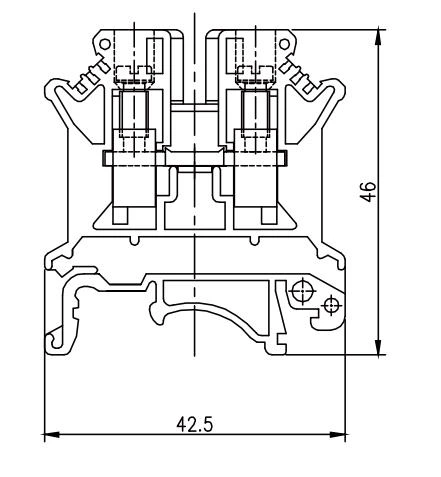

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
