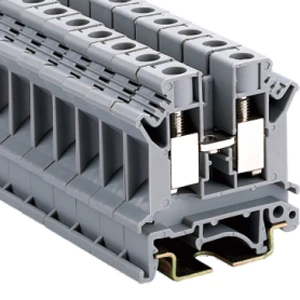

JHD5-10 - Feed-through terminal block
Feed-through terminal block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 2, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm²,Color: gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-10 |  |
10mm² 6mm² 10mm² | 6AWG 10AWG 6AWG | 10.2mm | 57A | 60 | 10.2/47/42.5 | 800V/57A/10mm² |
Specfication:
| End cover | D2.5-10 |
| Cross-connection 10-Polo,Separable | ZL2-10 ZL3-10 ZL10-10 |
| Insertion bridge 10-Polo,Separable | BLS2-10 BLS3-10 BLS10-10 |
| Partition plate | FP |
| Small Partition | CP |
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |
| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
