JHD5-16 - Feed-through terminal block
Feed-through terminal block, nom. voltage: 800 V, nominal current: 76 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 16 mm², cross section: 2.5 mm² - 25 mm²,Color: gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-16 |  |
16mm² 10mm² 16mm² | 4AWG 8AWG 4AWG | 12.2mm | 76A | 50 | 12.2/54/42.5 | 800V/76A/16mm² |
Specfication:
| End cover | D16 |
| Cross-connection 10-Polo,Separable | ZL2-16 ZL3-16 ZL10-16 |
| Insertion bridge 10-Polo,Separable | BLS2-16 BLS3-16 BLS10-16 |
| Partition plate | FP |
| Small Partition | CP |
| Marking tags | ZB10 |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

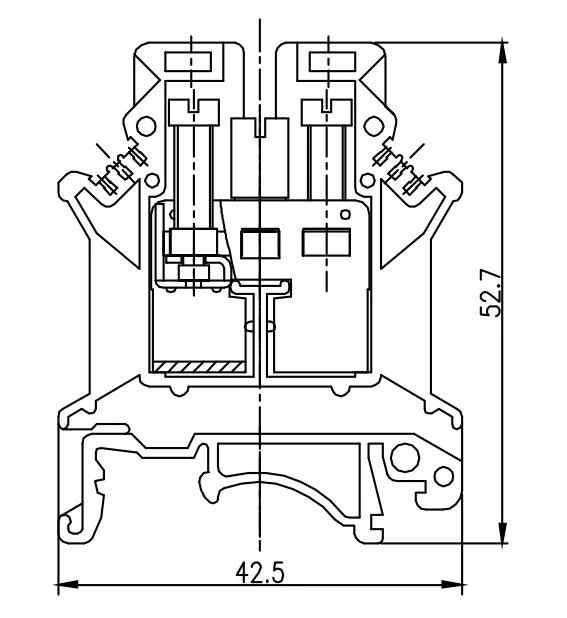

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
