Pull Down Kitchen Sink Faucet Installation & Care Manual
Publish Time: Author: Site Editor Visit: 138
Premium Quality Instructions for Effortless Installation
Tools You May Need
Installation Steps

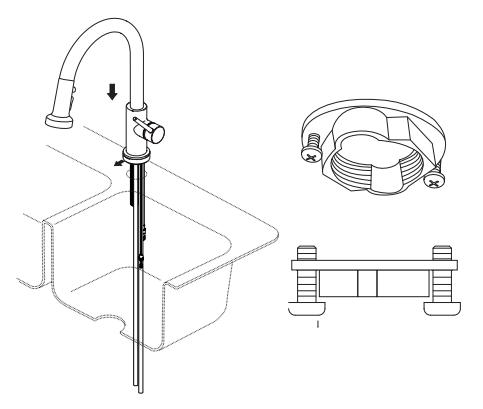

Mount Faucet to Deck (Single-Hole Sinks)
- Insert faucet tubes and shank through mounting hole in sink. Place faucet over mounting hole.
- Partially thread the screws as shown.

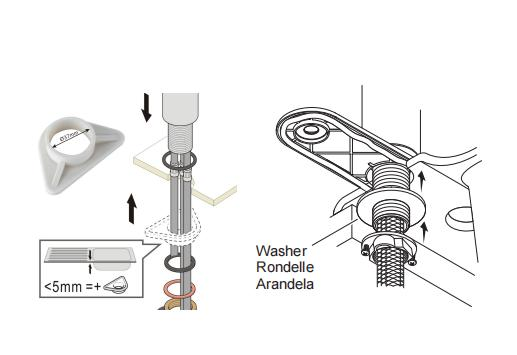

Install the Triangular Gasket
- If sink thickness < 5mm, install the Triangular Gasket.
- Install washer screw, fix nut, and tighten screws to secure faucet.

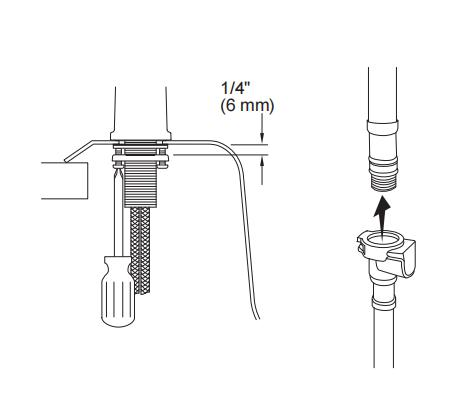

Fix Faucet & Connect Hose
- Ensure faucet is securely tightened with washer screw and nut.
- Connect the pull-out hose (1/4" / 6mm).
Install the Gravity Ball
Attach gravity ball to the right side, screw tightly to ensure proper function.

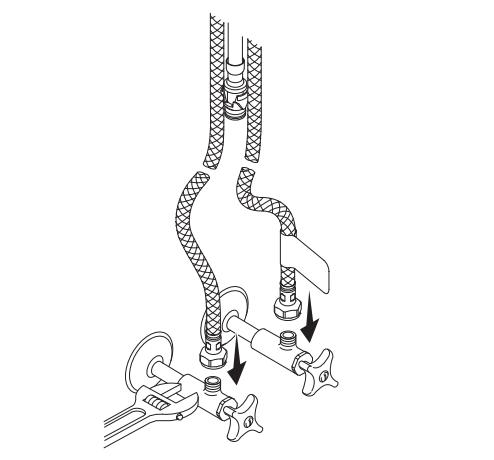

Install Hot/Cold Hoses
Connect red hose for hot water, blue hose for cold water.

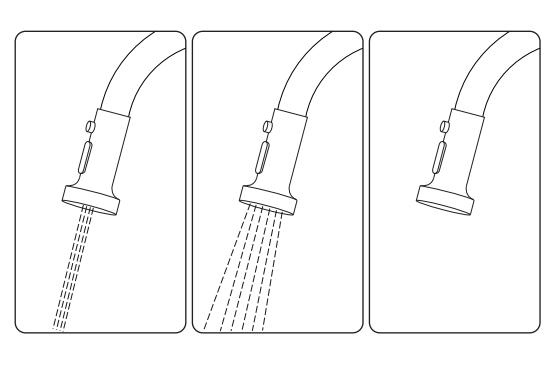

Sprayer Functions
| Mode | Function | Usage Scenario |
|---|---|---|
| Stream | Steady water flow | Filling pots and containers |
| Spray | Powerful rinse | Cleaning dishes and sink |
| Pause | Temporary stop | Avoid splashing during multitasking |
Cleaning and Care Instructions
Preserve your faucet's durability with proper care:
- Avoid harsh abrasives or polishes – they may damage the finish.
- Clean with a damp cloth, then blot dry with a soft towel.
Deep Cleaning Method for Nozzles
- With water running, rub nozzles to remove debris.
- Disconnect sprayhead to clean screen washer for improved flow.
- Reassemble after cleaning.
