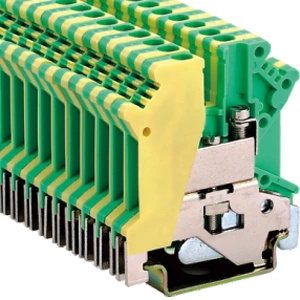

JHD5-6JD - Protective conductor terminal block
- Type:
- Protective conductor terminal block
- Number Of Connections:
- 2
- Number Of Positions:
- 1
- Connection Method:
- Screw connection
- Cross Section:
- 0.2 mm² - 10 mm²
- Mounting Method:
- PE foot with mounting screw, M4
- Color:
- green-yellow
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-6JD |  |
6mm² 4mm² 6mm² | 10AWG 12AWG 10AWG | 8.2mm | 75 | 8.2/47/42.5 | -/57A/6mm² |
Specfication:
| Marking tags | ZB6 |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

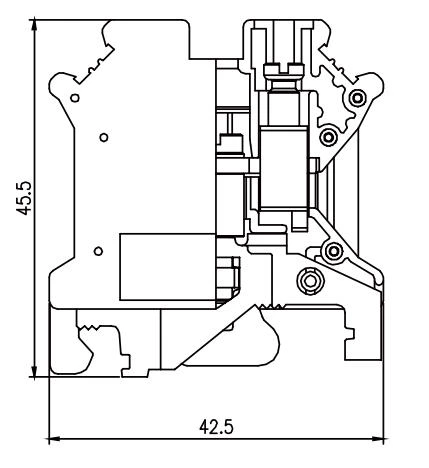

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
