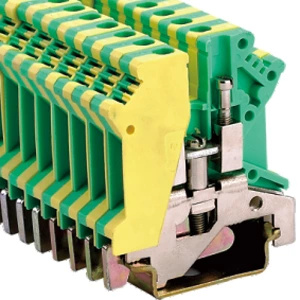

JHD5-4JD - Protective conductor terminal block
- Type:
- Protective conductor terminal block, When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V
- Number Of Connections:
- 2
- Connection Method:
- Screw connection
- Rated Cross Section:
- 4 mm²
- Cross Section:
- 0.2 mm² - 6 mm²
- Mounting Method:
- PE foot with mounting screw, M2
- Color:
- green-yellow
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-4JD |  |
4mm² 2.5mm² 4mm² | 12AWG 14AWG 12AWG | 6.2mm | 100 | 6.2/47/42.5 | -/34A/4mm² |
Specfication:
| Marking tags | ZB5 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

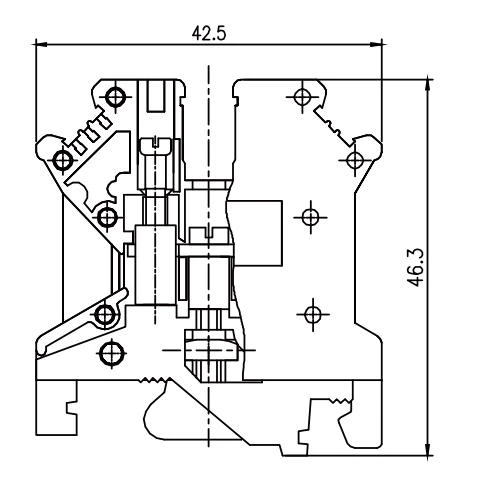

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
