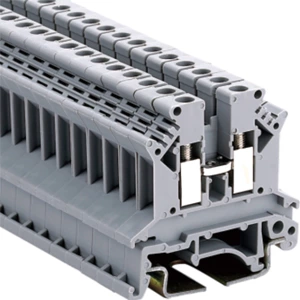

JHD5-2.5B - Feed-through terminal block
Feed-through terminal block, nom. voltage: 800V, nominal current: 24 A, number of connections: 2, connection method: Screw connection, cross section: 0.2 mm² - 4 mm², Color: gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-2.5B |  |
2.5mm² 1.5mm² 2.5mm² | 14AWG 16AWG 17AWG | 6.2mm | 24A | 100 | 6.2/42/42.5 | 800V/24A/2.5mm² |
Specfication:
| End cover | D2.5B |
| Cross-connection 10-Polo,Separable | ZL2-4 ZL3-4 ZL10-4 |
| Insertion bridge 10-Polo,Separable | BLS2-2.5B BLS3-2.5B BLS10-2.5B |
| Partition plate | FP |
| Small Partition | CPK3 |
| Marking tags | ZB6 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

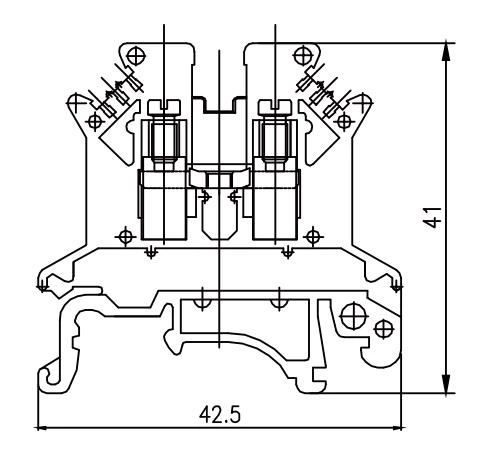

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
