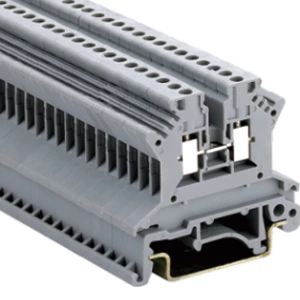

JHD5-1.5 - Feed-through terminal block
Feed-through terminal block, nom. voltage:500V, nominal current: 24 A, number of connections: 2, connection method: Screw connection, cross section: 0.2 mm² - 4 mm²,Color: gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-1.5 |  |
1.5mm² 1mm² 1.5mm² | 16AWG 18AWG 16AWG | 4.2mm | 17.5A | 150 | 4.2/42/42.5 | 500V/17.5A/1.5mm² |
Specfication:
| End cover | D2.5B |
| Cross-connection 10-Polo,Separable | ZL2-1.5 ZL3-1.5 ZL10-1.5 |
| Insertion bridge 10-Polo,Separable | BLS2-1.5 BLS3-1.5 BLS10-1.5 |
| Partition plate | FP |
| Small Partition | |
| Marking tags | ZB4 |
| Screw/Tightening torque(Nm) | M2/0.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

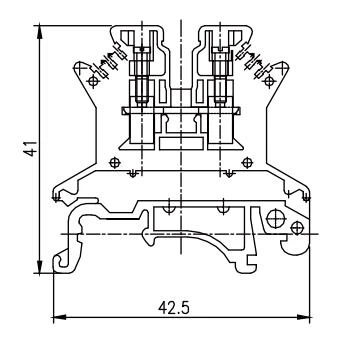

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
