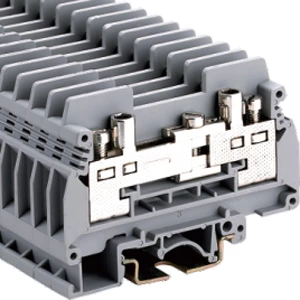

JHD5-6S - Test disconnect terminal block
Test disconnect terminal block, with two test sockets for 4 mm test plugs, or for receiving bridge bars or screw bridges, nom. voltage: 400 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm² , Color: gray

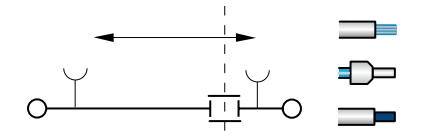

| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-6S |  |
4mm² 6mm² 4mm² | 10AWG 12AWG 10AWG | 8.2mm | 57A | 45 | 8.2/51.5/72 | 400V/57A/6mm² |
Specfication:
| End cover | D6S |
| Cross-connection 10-Polo,Separable | ZL2-6S ZL3-6S ZL10-6S |
| Small Partition | CP6S |
| Marking tags | ZB8 |
| Screw/Tightening torque(Nm) | M4/1.2 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |
| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
