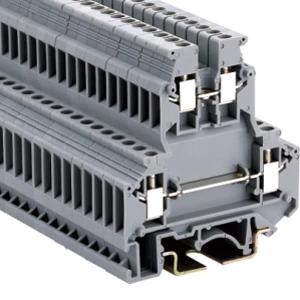

JHD5-2.5C - Double-level terminal block
Double-level terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², Color: gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-2.5C |  |
2.5mm² 1.5mm² 2.5mm² | 14AWG 16AWG 14AWG | 5.2mm | 32A | 100 | 5.2/62/56 | 500V/32A/2.5mm² |
Specfication:
| End cover | D4C |
| Cross-connection 10-Polo,Separable | ZL2-2.5 ZL3-2.5 ZL10-2.5 |
| Insertion bridge 10-Polo,Separable | BLS2-2.5 BLS3-2.5 BLS10-2.5 |
| Small Partition | CPK3 |
| Marking tags | ZB5 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

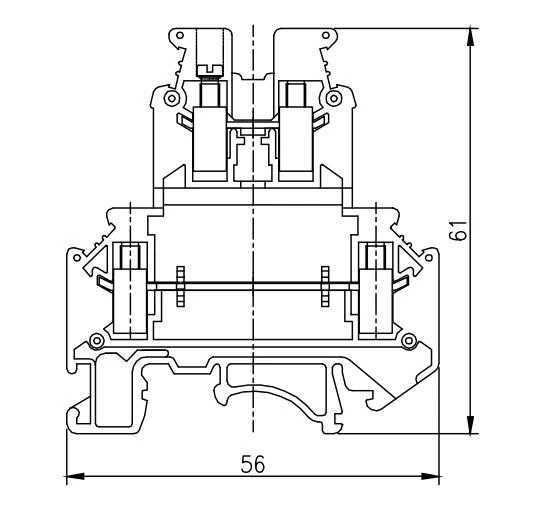

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
