JHD5-2.5SK - Knife-disconnect terminal block
- Type:
- Knife-disconnect terminal block, With test socket screws for insertion of test plugs
- Voltage:
- 500 V
- Nominal Current:
- 16 A
- Thermal Continuous Current Ith:
- 16 A
- Connection Method:
- Screw connection
- Rated Cross Section:
- 4 mm²
- Cross Section:
- 0.2 mm² - 6 mm²
- Color:
- gray
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-2.5SK |  |
4mm² 2.5mm² 4mm² | 12AWG 14AWG 12AWG | 6.2mm | 16A | 84 | 6.2/58.5/51 | 800V/16A/4mm² |
Specfication:
| Marking tags | ZB6 |
| Screw/Tightening torque(Nm) | M3/0.6 |
| Material | PA |
| Flame retardant rating UL-94 | V0 |

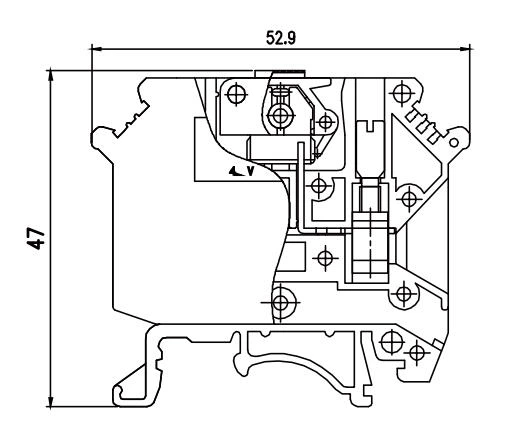

| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
