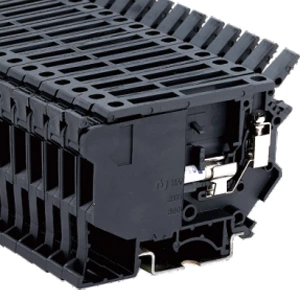

JHD5-4RD - Fuse modular terminal block
- Type:
- Fuse modular terminal block
- Fuse Type:
- Glass / ceramics / ... G / 5 x 20 / 5 x 25
- Voltage:
- 800 V
- Nominal Current:
- 6.3 A
- Number Of Positions:
- 1
- Connection Method:
- Screw connection
- Rated Cross Section:
- 4 mm²
- Cross Section:
- 0.2 mm² - 4 mm²
- Color:
- black
| Model | Function | Wire IEC cross-section | Wire UL | Thickness | Maximum current | Number of packages | Thickness/Height( )/Width mm |
Rated voltage/rated current/rated cross-sectior |
| JHD5-4RD |  |
4mm² 2.5mm² 4mm² | 12AWG 14AWG 12AWG | 8.2mm | 6.3A | 45 | 8.2/56.5/72.5 | 800V/6.3A/4mm² |
Specfication:
| With Light | With Light
|
||||||||||||
Fuse
|
|||||||||||||
| Marking tags | ZB8 | ||||||||||||
| Screw/Tightening torque(Nm) | M3/0.6 | ||||||||||||
| Material | PA | ||||||||||||
| Flame retardant rating UL-94 | V0 | ||||||||||||
| Dimensions |  |
With universal mounting feet for standard top-hat(Ω profile) and G-profile DIN rail mounting.
